Basic Info.
Model NO.
SD810
Mathematical Model
Linear
Signal
Continuous
Function
Automatic Control
Certification
CE
Condition
New
Customized
Non-Customized
Material
Aluminum Alloy
Scalable Power
1kw to 75kw for One Drive
Comprehensive Protection
Sto, Sil3 Compliance
Grid Voltage
Three-Phase 380VAC~480VAC (-15%~+10%)
Power Range
Rectifier Unit: 45kw, 110kw, 160kw
Grid Type
Tn, Tt, It Star Topology
Transport Package
Carton Box/Wood
Trademark
VEICHI
Origin
Suzhou, China
Production Capacity
600, 000 PCS/Year
Product Description
SD810 series multifunctional servo platform offers efficient solutions for industrial machinery across injection molding, die-casting, bending, manipulator, forging tool, turret punch press, steel cutting, and handling equipment.
It boasts easy one-touch adjustment, an adaptive notch filter, torque compensation, and a reliable, compact design, simplifying installation, power/wiring distribution, and maintenance for a better user experience.
>>> High Energy Efficiency
Parallel bus boosts efficiency, reducing energy by 5%-30% than one drive and eliminating braking resistance needs.
>>> Space-Efficient Design
>>> Wide Power Range
>>> Comprehensive Protection
STO, SIL3 compliance
>>> Flexible Expansion
For developing industry-specific products;
Supports third-party motors.
>>> Extensive Application
Spanning various industries such as injection molding, die-casting, bending, manipulator, forging, punch press, metal cutting, and material handling.
>>> Precise Positioning Standard with a 23-bit absolute encoder,upgradeable to a higher precision encoder upon request.
>>> Rectifier Module Naming

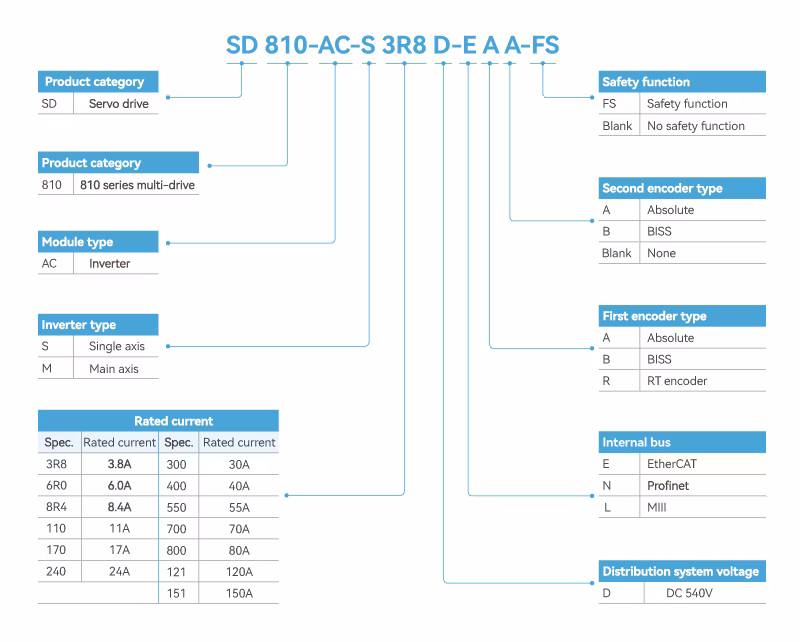

>>> Inverter Module Naming
| Basic parameters | Grid voltage: Three-phase 380VAC~480VAC (-15%~+10%) Power range: Rectifier unit: 45kW, 110kW, 160kW Grid type: TN, TT, IT star topology Input frequency: 50Hz/60Hz(47Hz~63Hz) Braking: Add braking module and braking resistor |
|---|---|
| Customization | Comm./Bus Modbus-RTU: 115200 max. baud rate, 128 nodes, 1000m max distance Profibus-DP (optional): 12M max. rate, 32 nodes, 100m max distance CANopen: 1M max. rate, 64 nodes, 40m max distance PROFINET: 100M max. rate, 100m max distance |
| HMI | DI, DO/Display: 1-channel multi-function input terminal, isolated drain/source programmable terminal with working voltage from 9V to 30V, invalid below 5V. 3kΩ input impedance, compatible with 100Hz inputs. 3-channel relay output with programmable normally open and closed contacts. |
| Protection | Protects against temperature, phase loss, voltage imbalance, over-voltage, brake circuit over-current, resistor short-circuits, and brake tube blocking |
| Environment | IP: IP20 Cooling: Forced air-cooling Temperature Operating: -10°C to 50°C, air temp change < 0.5°C/min; derate use at 40°C+, 1.5% current derate per °C increase, max 50°C. Storage: -25°C to 70°C. Transport: -25°C to 70°C. RH Operating: 5%-95% humidity, not suitable for corrosive gas environments Storage: 5%-95% relative humidity Transport: <95% relative humidity at +40°C Altitude: Up to 1,000m with a 1% rate reduction for each additional 100m, max. at 3,000m |
| Control | IGBT PWM controlled sinusoidal current drive mode |
|---|---|
| Feedback | Rotary servo motor: Serial encoder: 17-bit, 23-bit, 24-bit, 25-bit multi-turn absolute encoder, rotary transformer Linear servo motor: Incremental scale, parallel signals |
| Environment | Ambient temp. Operating: -10ºC~50ºC, <0.5ºC/min air temp. change, derates 1.5% per °C above 40ºC, max 50ºC Storage temp.: -20ºC~70ºC Ambient humidity: Below 95%RH (no freezing or condensation) Storage humidity: Below 95%RH (no freezing or condensation) Vibration resistance: 4.9m/s2 Impact resistance: 19.6m/s2 IP: IP20 (when properly installed) Cleanliness: No corrosive or flammable gases No water, oil, chemicals splash Less dust, dirt, salt and metal powders Altitude: 1,000m, derates 1% per 100m above, max 3,000m |
| Performance | Speed control: 1:5000, stable at rated torque Speed load: Below ±0.01% of rated speed (Load: 0%~100%) Fluctuation rate voltage: Below ±0.01% of rated speed (Voltage: ±10%) Temperature: Below ±0.1% of rated speed (Temp.: 25ºC±25ºC) Torque control accuracy (reproducibility): ±1% Soft-start time: 0s~30s (for separately set accel./decel.) |
| Communication | Bus (CN6) USB (CN7) |
| Display | CHARGE, 8-segment LED × 5bit |
| Panel Operator | Button switch× 4 |
| Regeneration | External |
