Product Description
Application and Features

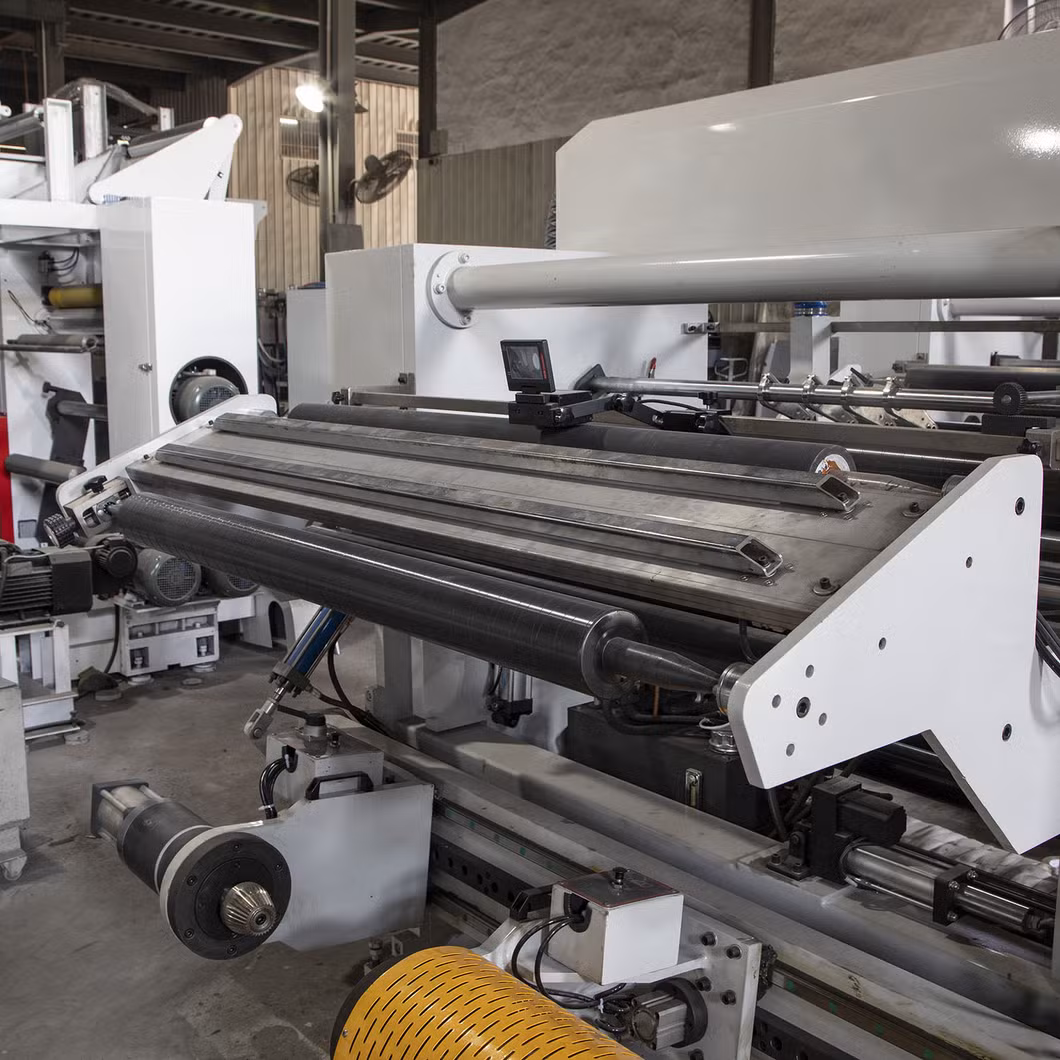

The machine is suitable for slitting and rewinding PET/PVC/ adhesive,release paper,plastic material,etc.
PERFORMANCE AND FEATURES
1. The machine adopts three Servo motor control, automatic tension, center reeling way;
2. Auto counter meter, auto machine stop when had alarm.
3. The rewinding adopts A,B inflatable shaft,operate neatly and assemble conveniently.
4. The unwinding adopts ultrasonic wave correcting method.
5. The circular cutter with slitting slitter edge and automatic discharge device.
6. Continuous unwinding structure.
More details
Model:1300
Max.Diameter of raw material unwinding:φ800mm
Max.Diameter of raw material rewinding:φ600mm
Max.Width of slitting raw material:30-1300mm
Diameter of air swelling shaft:φ76mm/2pcs (3#)
6 inch slip shaft optional
The number of the reel at the same time:2 strips
7.Precision of slitting:±0.2mm
8.Max.speed:150-400m/min
9.power:about 20KW
11.Weight:About 3800 kg
Machine Configuration:
(1). Unwinding :unwinding part use Hydraulic shaftness
- Machine rack use steel structure. Moveround use linear guide.
- Move around use static type correction system.EPC use CCD.
- Tension control:tension use brake control 10kg 1sets
- .Main Engineer(Surface friction type):Rack use high quality casting structure
- Driver and drive mechanism:
(1)Capstan roll use motor and reducer rate combining way
(2) Motor use servo motor: Shanghai Danma 5.5KW 1set
(3) Frequency converter 1set
- Traction equipment:
Structure type: Active traction pneumatic press roller way
Driver way: main motor drive main drive roll, main axle drive main traction roll
The traction roller is treated with anti-skid adhesive tape, and the adhesive tape is imported cork adhesive tape
- Slitting equipment:
Use circular knife slitting equipment structure
Flat knife use Shanghai, can freely adjust 10pcs
Slitting Precision:±0.2mm
the waste side discharge system adopts the high pressure fan2.2KW
- Rewinding equipment:
Structure way: two pneumatic slip differential shafts
(1) Mechanical arm adopts linear guide mode
(2) The surface winding form principle is: the winding reel is close to the press roll synchronous winding
(3) Rewinding Roll use spline pneumatic shafts (3inch)
(4) Rewinding Motor use servo5.5KW
(5) The inverter 2pcs
- Control unit
It's electrical control box and power supply together on the machine
Machine's control system including main engineer speed control, unwinding tension control,rewinding tension control, auto meter count etc control by PLC, touch screen use WEINVIEW Taiwan, PLC use Siemens Germany; and other control(Hydraulic pressure type)
(2) Pneumatic system components using made in China
(3) Steam pressure system components are imported
(4) bearings-NSK
(5)PLC auto meter counter, auto stop when alarm,auto fixed length.
(6)It can auto stop when it reached the setting meter.
- Extra Equipment:(buyer responsible for it)
Power supply:3phase 4 wire switch; 380V 50HZ(can be customized)
Air :air compressor--customer provide st his side.
Main Technical Parameters
| Model | WFQ1100/WFQ1300/WFQ1600 |
| Max. slitting speed | 450m/min |
| Max. unwinding DIA | 800mm |
| Max. rewinding DIA | 600mm |
| Max. unwinding width | 1100mm/1300mm/1600mm |
| Total power | 15KW |
More Details
WorkShop
Packaging & Delivery
1.Packaging Details: wooden pallet or plastic film
2.Delivery Detail: 30-60 days
3.Port: Ningbo port
1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .
2. What should we charge for your engineer?
Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 80USD per day.
3. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation
