Product Description
HS603 series AC servo drive, three servos are integrated in the same frame, three axis synchronous control, excellent inheritance and innovation, across the barriers and complexity of multiple single operation, save 40% of space, to achieve optimal configuration, support high resolution encoder, can achieve precise position digital control. Meet your high integration, miniaturization needs, simple installation, convenient connection, bring the enjoyment of lightweight applications.
Power class: 220V,1PH ,0.75-1.5KW
Name plate :

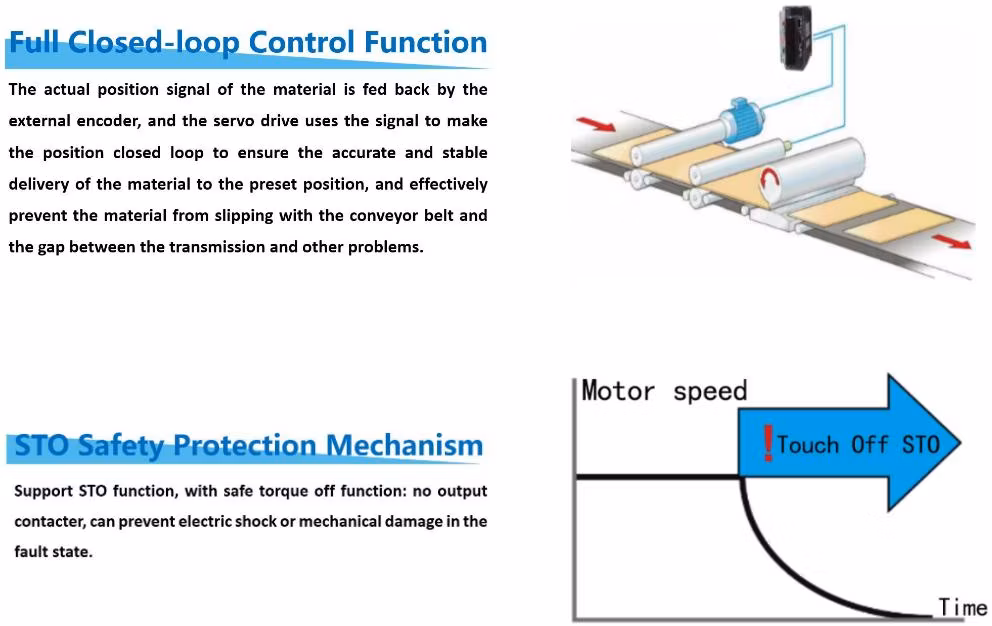

Product Features:
Integrated structure design, beyond single machine thinking, integration of three axis servo in the same frame.
Improved power utilization, energy saving.
Multi - axis simultaneous interpolation control, command synthesis, high synchronization.
Parameter management, monitoring, debugging, etc. are integrated in one drive, easy to operate.
High response frequency, greatly improve the processing speed, shorten the setting time, maximize the play of high-end mechanical properties.
It can be used in machine tool/textile and other industries.
HS Series Techinical Standard:
Name of Drive Components:
Scope of application:
It can be flexibly applied to CNC machine tools, plastic machinery, packaging machinery, textile machinery and other industries according to speed control, position control and torque control.
Application online images:
DIMENSION:(UNIT:MM)
| Volume Of Chassis | Model | Dimensions | Monuting Dimension | Monuting Hole | ||||
| H | W | B | D | H1 | W1 | φ | ||
| Type B Chassis | HS603-080808SA | 226 | 120 | 208.2 | 248.1 | 209 | 103 | 6.5 |
