Basic Info.
Model NO.
KYDBL4830-2E
Signal
Continuous
Function
Automatic Control, Protection
Certification
ISO: 9001, CE
Condition
New
Customized
Customized
Material
PCB
Volt
10-55VDC
Current
30A
Weight
0.55kg
Warranty
1 Year
Transport Package
Carton
Specification
142mm * 116.5mm * 34mm
Trademark
ZHIBI
Origin
China
HS Code
9032899090
Production Capacity
100000/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
1.000kg
Product Description
MMT-KYDBL24/4830-2E is a kind of intelligent dual channal brushless dc motor controller.This controller can controller two BLDC motor at the same time.The use of high-performance 32-bit MCU controller, adopts the advanced control algorithms, Senior sports processing algorithm was adopted to realize the internal electronic differential function.Controller using motor internal hole signal as the rotor position feedback, coordinate external incremental encoder (1000-2500PPR) signal control motor movement, speed open-loop and closed-loop mode, location mode, torque mode.Two way independent drive chip, two way encoder processing chip, two lines of hall signal processing chip.At the same time has a variety of fault alarm function.Working mode is divided into two;Independent model and hybrid model.
| Model | KYDBL4830-2E |
| Operating Voltage | DC 24/48V |
| Ultimate Supply Voltage | DC 10-55V |
| Adaptable Motor Power | Less than 600w |
| Rated Speed | 10A |
| Instaneous Max. Current | 30A |
| Overcurrent Time | 500ms |
| Signal Feedback | Incremental Encoder, Hall Feedback |
| Working Mode | Speed Mode, Torque Mode, Position Mode ( please leave a message when place the order) |
| Control Method | RS23, CAN2.0, PC, 0-5v,PWM |
| Controllable Speed Range | 0-6000RPM |
| Dimension | 142*117*34mm |
| Weight | 0.55kg |
| Wiring Harness Standard | 1M |
| Cooling Method | Natural Cooling |
| Operating Temperature | -25ºC-+60ºC |
| Storage Temperature | -35ºC-+65ºC |
| Insulating Properties | The output and input are insulated to DC 600Vfrom the chassis,leakage current is0.007mA, insulation resisitance is above 20MΩ. |
| Protective Properties | Dust-proof, Moisture-proof, Salt Spray-proof |
| Protective Function | Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function. |

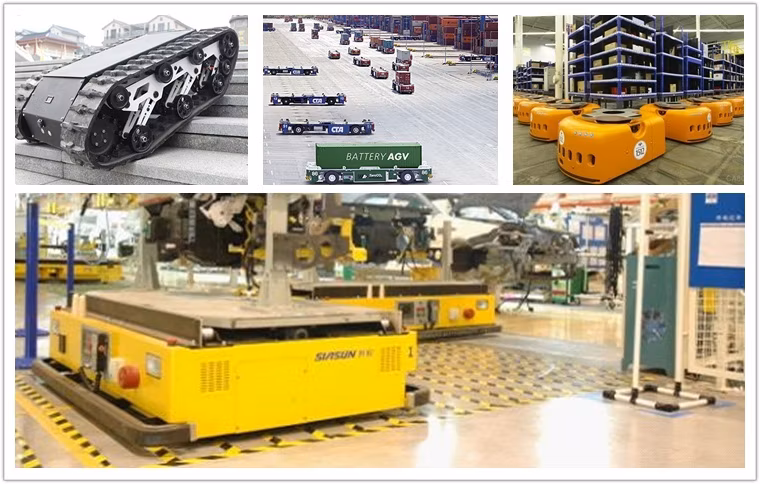

| Application | Automatic Guided Vehicle, Intelligent robot, crawler vehicle, fire fighting robot, exploder clearing robot, shopping guide robot, medical robot, rescue robot, routing inspection robot, theme park robot Note: We recommend you provide the motor and application details you want before placing your order and we will recommend the most suitable bldc controller for you. |
- Standard export carton with sponge
- Size : base on the order
- Weight : base on the order
- Detail data will be confirmed before shipping
| Pre-service | After Sales Service |
| Inquiry and Consult Support Sample testing Support View our Factory | Help instal and use the product 24 hours online problem solving |
