Basic Info.
Model NO.
42SC08
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
4
Operate Mode
Driving
Type
Magnetic-Electric
Certification
ISO9001, Ce,RoHS
Brand
Novotech
Name
Closed Loop DC Stepper Motor Control
Transport Package
Green Export Package
Specification
NEMA
Trademark
Novotech
Origin
China
HS Code
8501310000
Production Capacity
1000000 PCS/Year
Product Description

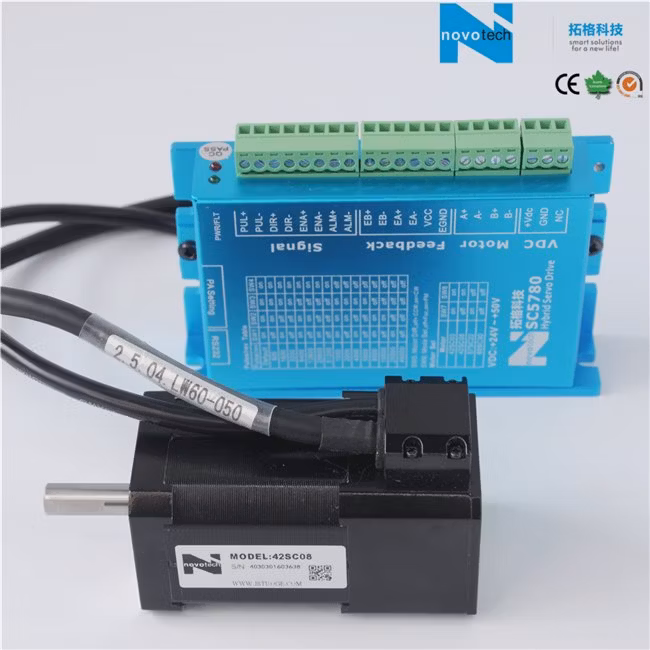

Closed Loop dc Stepper Motor Control
Technical Parameter
Specifications
Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area. Besides, we also have matched stepper motor driver.
Application
Our products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.
Packaging and shipping
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
Our service
1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.
FAQ
Q1: How to choose the suitable stepper motor?
A1: There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.
2.Before we send out the goods,we check them more than three times.
Contact
Technical Parameter
| Item | Specifications |
| Step Angle Accuracy | ±5%(full step,no load) |
| Temperature Rise | 50 degree Max |
| Ambient Temperature | -20 degree to +50 degree |
| Insulation Resistance | 100MΩMin.500VDC |
| Withstand Voltage | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
Specifications
| Model No. | Phase | Step Angle | Holding Torque | Rated Current | Phase Inductance | Phase Resistance | No.of Leads | Rotor Inertia | Body Length | Weight | Remark |
| ° | Nm | A | mH | Ω | gcm2 | mm | kg | ||||
| 42SC03 | 2 | 1.8 | 0.4 | 2.3 | 2.8 | 1.65 | 4 | 73 | 69 | 0.37 | shaft Dia 8mm shaft Length:24mm |
| 42SC08 | 2 | 1.8 | 0.6 | 2.3 | 2.5 | 1.3 | 4 | 86 | 76 | 0.45 | shaft Dia 8mm shaft Length:24mm |
Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area. Besides, we also have matched stepper motor driver.
Application
Our products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.
Packaging and shipping
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
Our service
1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.
FAQ
Q1: How to choose the suitable stepper motor?
A1: There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.
2.Before we send out the goods,we check them more than three times.
Contact
