Very good linearity
Easy installation
Can be customized
Low temperature drift
Optimized response time
High immunity to external interference
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
| Electrical data:(Ta=25ºC,Vc= ±15VDC) | ||||
| Parmeter Ref | CHB100LTHA115D50 CHB100LTHA215D50 | CHB200LTHA115D100 CHB200LTHA215D100 | CHB300LTHA115D150 CHB300LTHA215D150 | CHB300LTHA115D100 CHB300LTHA215D100 |
| Rated input Ipn(A) | 100 | 200 | 300 | 300 |
| Measuring range Ip(A) | 300(±18V,80Ω) | 600(±18V,20Ω) | 750(±18V,10Ω) | 900(±18V,3.0Ω) |
| Turns ratio Np/NS (T) | 1:2000 | 1:2000 | 1:2000 | 1:3000 |
| Output current rms IS(mA) | 50±0.2% | 100±0.2% | 150±0.2% | 100±0.2% |
| Secondary coil resistance RS (Ω) | 25 | 35 | 30 | 52 |
| Measure resister with ±12V RM (Ω) | @100Amax 90(max) | @200Amax 68(max) | @300Amax 39(max) | @300Amax 56(max) |
| @200Amax 80(max) | @500Amax7.5(max) | @500Amax 12(max) | @600Amax2.0(max) | |
| Measure resister with ±15V RM (Ω) | @100Amax250(max) | @200Amax100(max) | @300Amax 62(max) | @300Amax 91(max) |
| @200Amax 110(max) | @500Amax 20(max) | @700Amax 10(max) | @750Amax 2.0(max) | |
| Supply voltage VC(V) | ±12~±18 | |||
| Zero offset current (mA) | @Ip=0 ≤±0.2 | |||
| Offset current drift(mA) | @ -40ºC~85ºC ≤±0.5 | |||
| Linearity (%FS) | @Ip=0-±Ipn ≤0.1 | |||
| Linearity error εr(%FS) | @Ip=0-±Ipn ≤0.1 | |||
| Di/dt accurately followed(A/µs) | > 100 | |||
| Response time tra(µs) | @100A/μS, 10%-90% <1.0 | |||
| Power consumption IC (mA) | ≤20+IpX(Np/Ns) | |||
| Bandwidth BW(KHZ) | @ -3db DC…150 | |||
| Insulation voltage Vd(KV) | @ 50HZ,AC,1min 6 | |||
| General data: | |
| Operating temperature TA(°C) | -40 ~ +85 |
| Storage temperature TS(°C ) | -40~ +125 |
| Mass M(g ) | 79 |
| Plastic material | UL94-V0. |
| Standards | EN60947-1:2004 |
| IEC60950-1:2001 | |
| EN50178:1998 | |
| SJ 20790-2000 | |

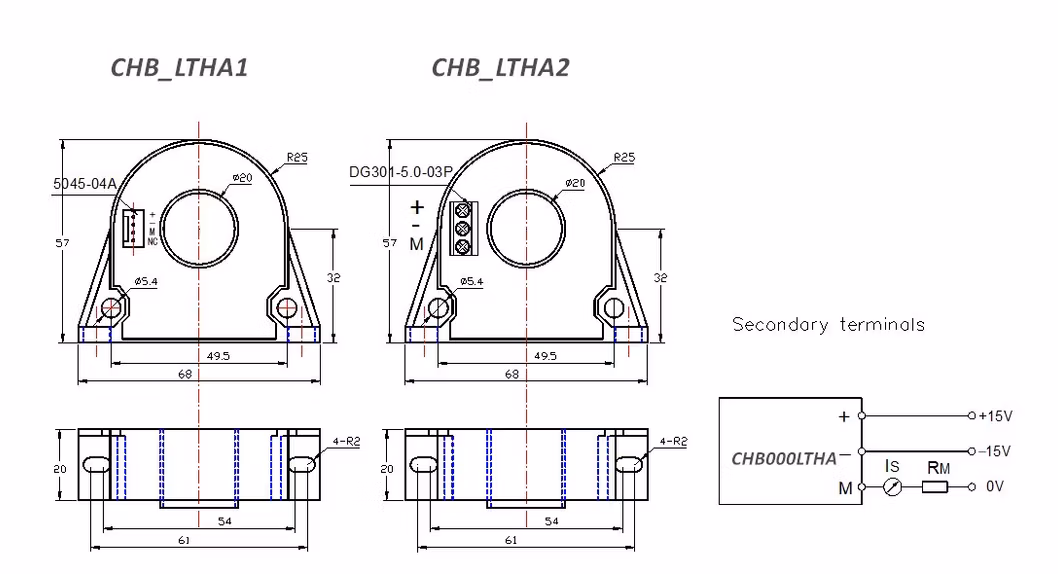

| Dimensions(mm): |
 Remarks: 1. All dimensions are in mm. 2. General tolerance ±1mm. |
